New Layout
There are now 3 pcb's:
Main
LH Controls
RH Controls

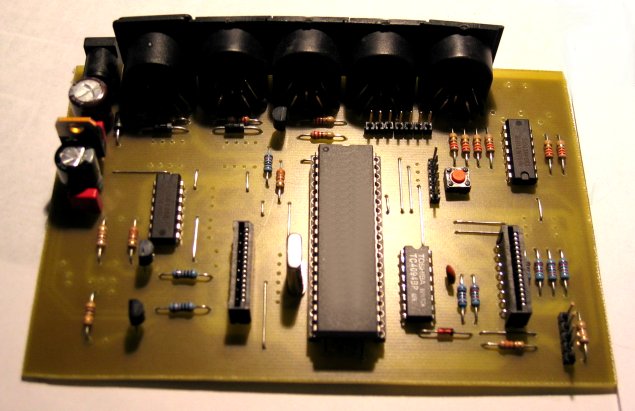

Below shows new main pcb

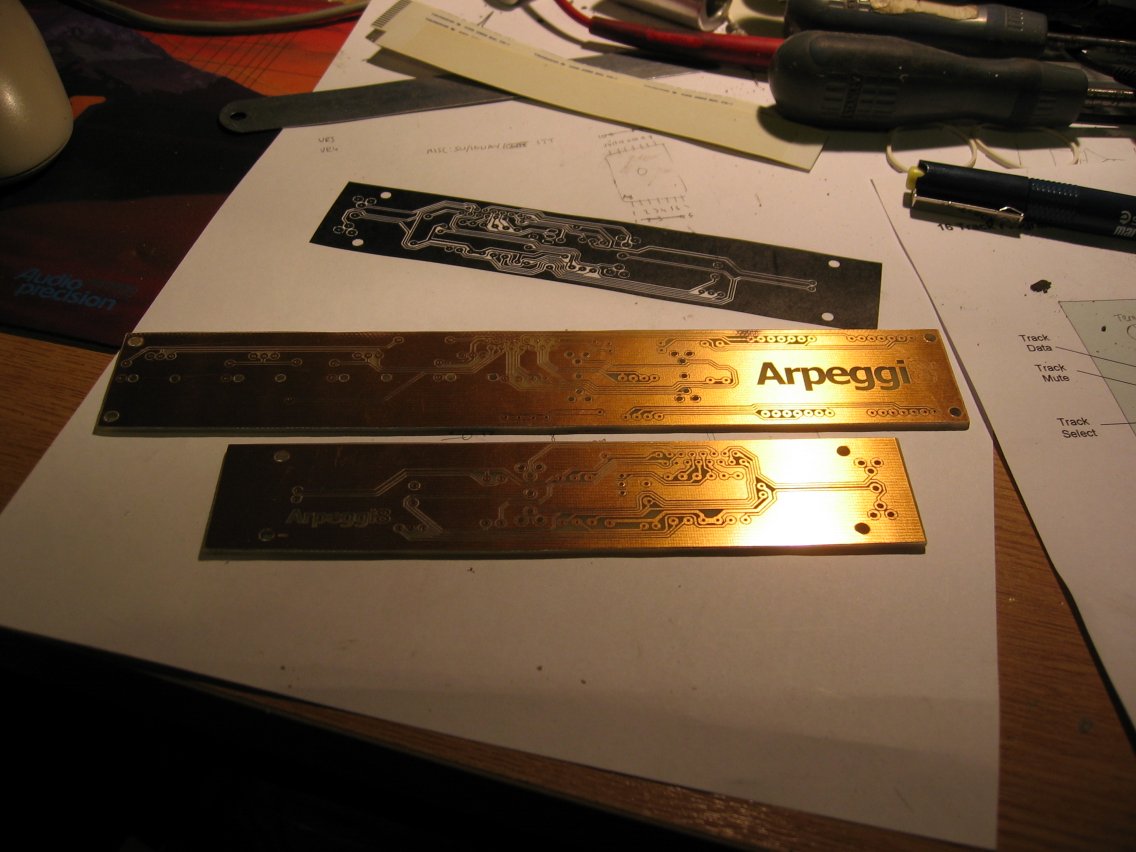

New Left and Right panels
Main PCB and left/right panels dry run.
The new layout is all leaded components in order to make it diy friendly and has sufficient flexibility to allow a standard config rack or desktop unit.
In modular format the pcbs can be stacked side by side in 2U or 3U config and there are headers to connect external CV's to control gate and speed as well as gate outs for triggering external modules.

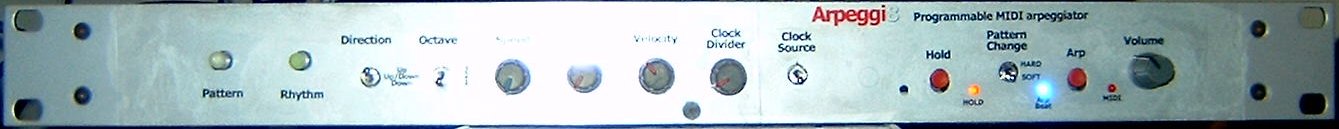

Picture of rack mount
